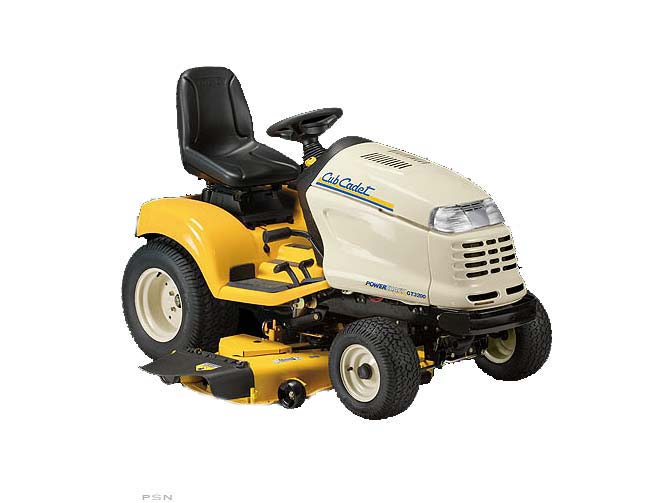

Cub Cadet Gt 3100 Shop Manual
Yes, printed Cub Cadet Operator's Manuals, Illustrated Parts Lists and Engine Manuals are available for purchase. The price for a pre-printed manual is typically less than $20+s/h, but can range up to $45+s/h for larger documents.
25 Hydrostatic Transmission Keep the area around the transmission cooling fan free of grass and debris at all times. The hydrostatic transmission is sealed at the factory and is maintenance free. The fluid level cannot be checked and cannot be changed.
Changing the Deck Belt WARNING: Shut the engine off, remove ignition key, disconnect the spark plug wire(s) and ground against the engine to prevent unintended starting before removing the belt. WARNING: Avoid the possibility of a pinching injury. Do not place your fingers on the idler spring or between the belt and a pulley while removing the belt. All belts on your tractor are subject to wear and should be replaced if any signs of wear are present. IMPORTANT: The V-belts found on your tractor are specially designed to engage and disengage safely.
Spinning Guides For Custom Fishing Rods. Whether you are looking for small single foot micro guides, or large double foot roller guides, we have a huge. The spool is stationary and a rotor/line guide revolves or spins around the fixed. There are many positive aspects to fishing with a spinning reel, but one of the. Fishing spinning guide. Spinning Guide Kits For Custom Fishing Rods. Whether you are looking for small single foot micro guides, or large double foot roller guides, we have a huge.
A substitute (non-OEM) V-belt can be dangerous by not disengaging completely. For a proper working machine, use factory approved belts.
To change or replace the deck belt on your tractor, proceed as follows:. Lower the deck by moving the deck lift lever into the bottom notch on the right fender. Remove the spindle covers by removing the self- tapping screws that fasten them to the deck. Remove the belt keeper rod from around the engine pulley.
Cub Cadet Gt 3100 Price
Insert a 3/8”-drive ratchet wrench (set to loosen) into the square hole found in the idler bracket on the left side of the deck’s surface. See Figure 23. Figure 23. Grasp the ratchet’s handle and pivot it to the right of the tractor to relieve tension on the belt.
With belt tension relieved, carefully remove the belt from around the left-hand spindle pulley. Install the new belt and route as shown in Figure 24; then tension the belt following the previous instructions. Figure 24 Spindle 3/8” Square Hole Idler Bracket Cover Pivot Idler Brkt. Idler Pulley.
